FEATURES:

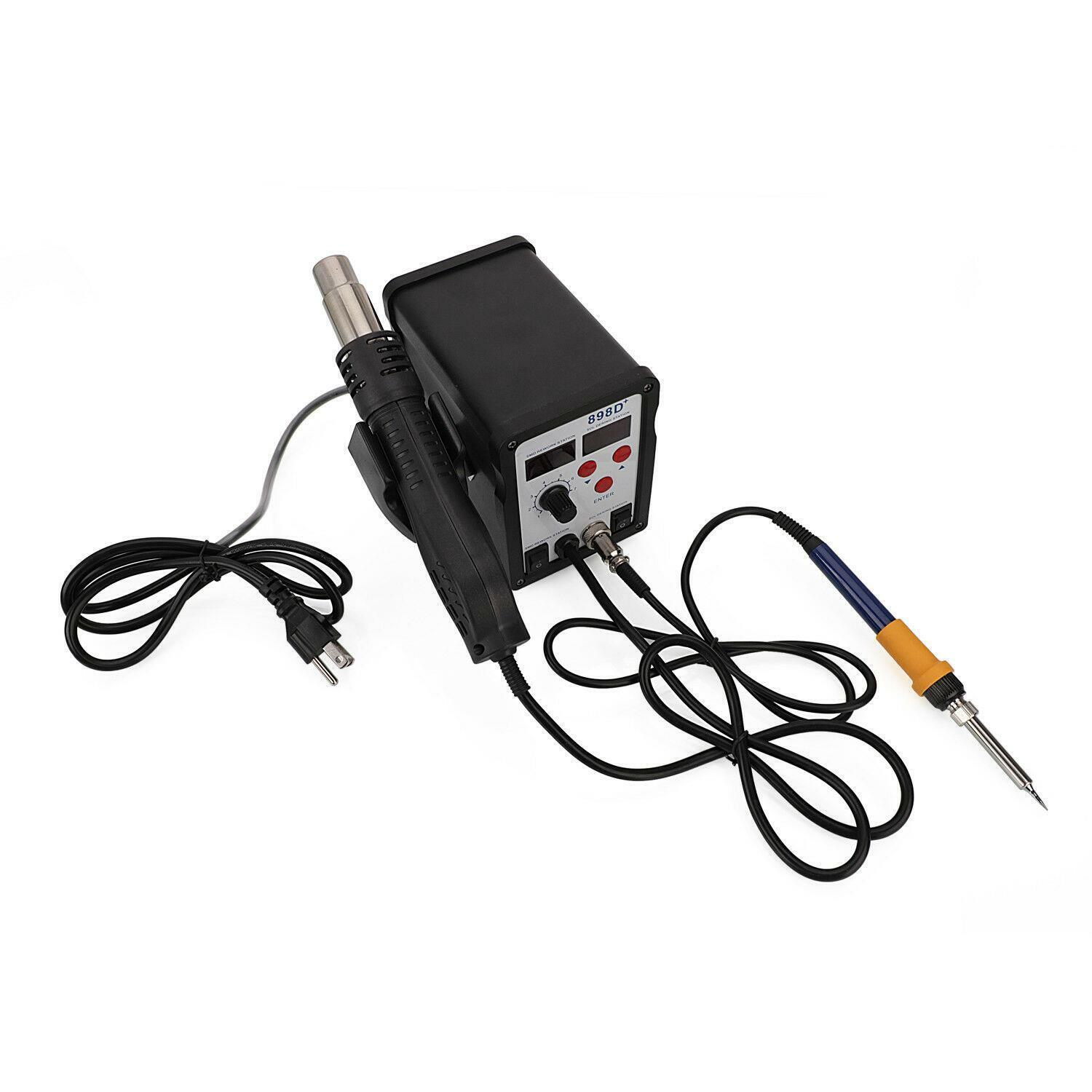

• Hot air and hot iron 2in1 rework soldering station
• Extremely low noise and space saving design
• Dual LCD digital displays to show precision temperature
• SAMSUNG microcomputer control, quick warming-up
• PID technology to enhance temperature stability
• Adjust the airflow and temperature control rotation easily
• Intelligence self-detection function features safe personal operation
• Automatically stop rotation when the temperature is less than 70℃
• Handle with sensor switch features access operating mode when picked up or standby mode when lays down
• Automatic cooling function for effectively prolonging the heater's life and protecting the hot air gun
• ESD design of soldering iron to protect sensitive components
• International standard heater for convenient use and exchange
• High-quality resistance for durable use
• Plastic holder for placing the hot air gun

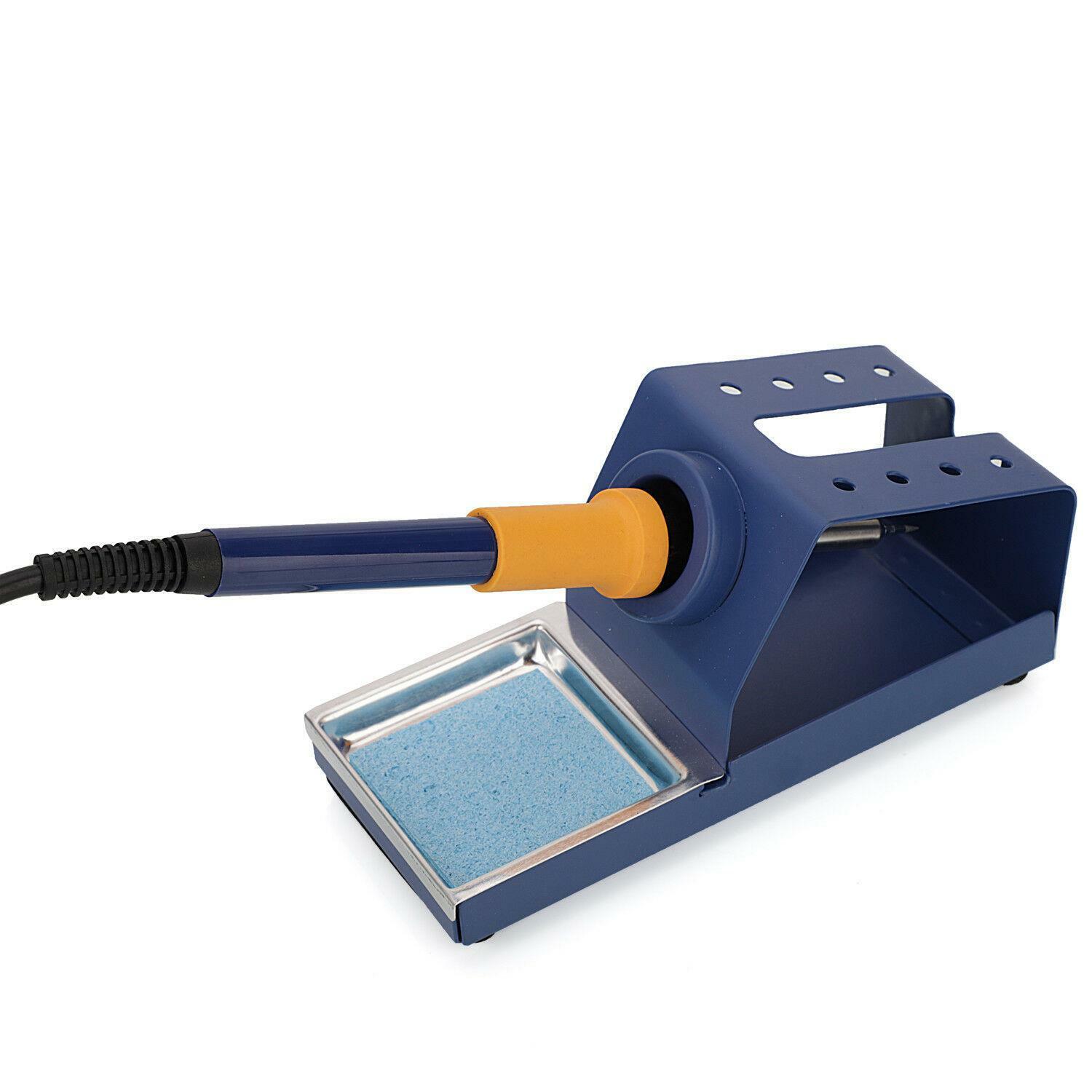

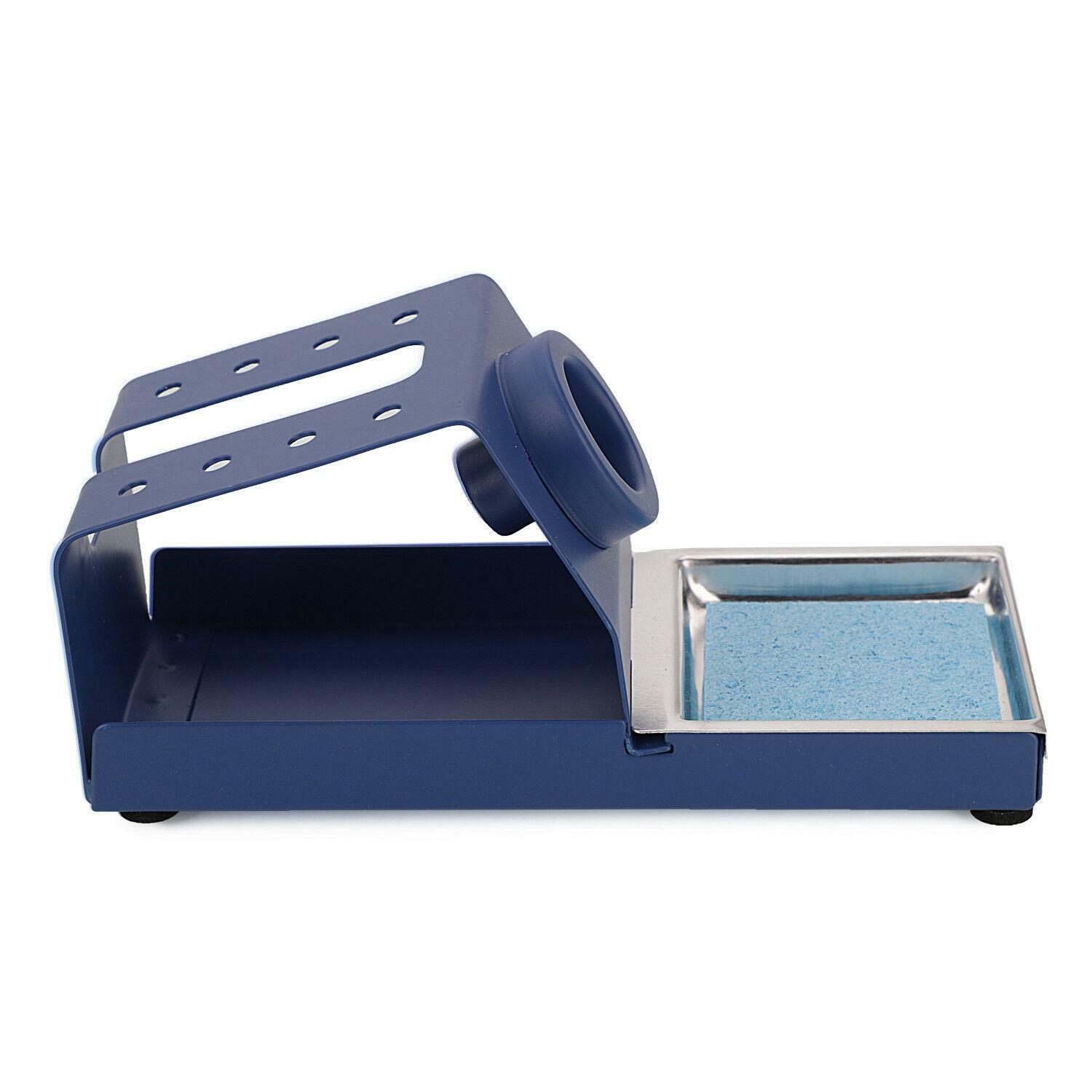

• Metal stand for keeping the iron from flammable materials
• Suitable for SOIC, CHIP, QFP, PLCC, BGA and temperature-sensitive components
• Fits for heating shrink, drying, lacquer removal, viscidity removal, ice-out, pre-heating and glue soldering
• CE approved

SPECIFICATIONS:

SMD Rework Station

• Condition: New
• Rated Power Input: 700W

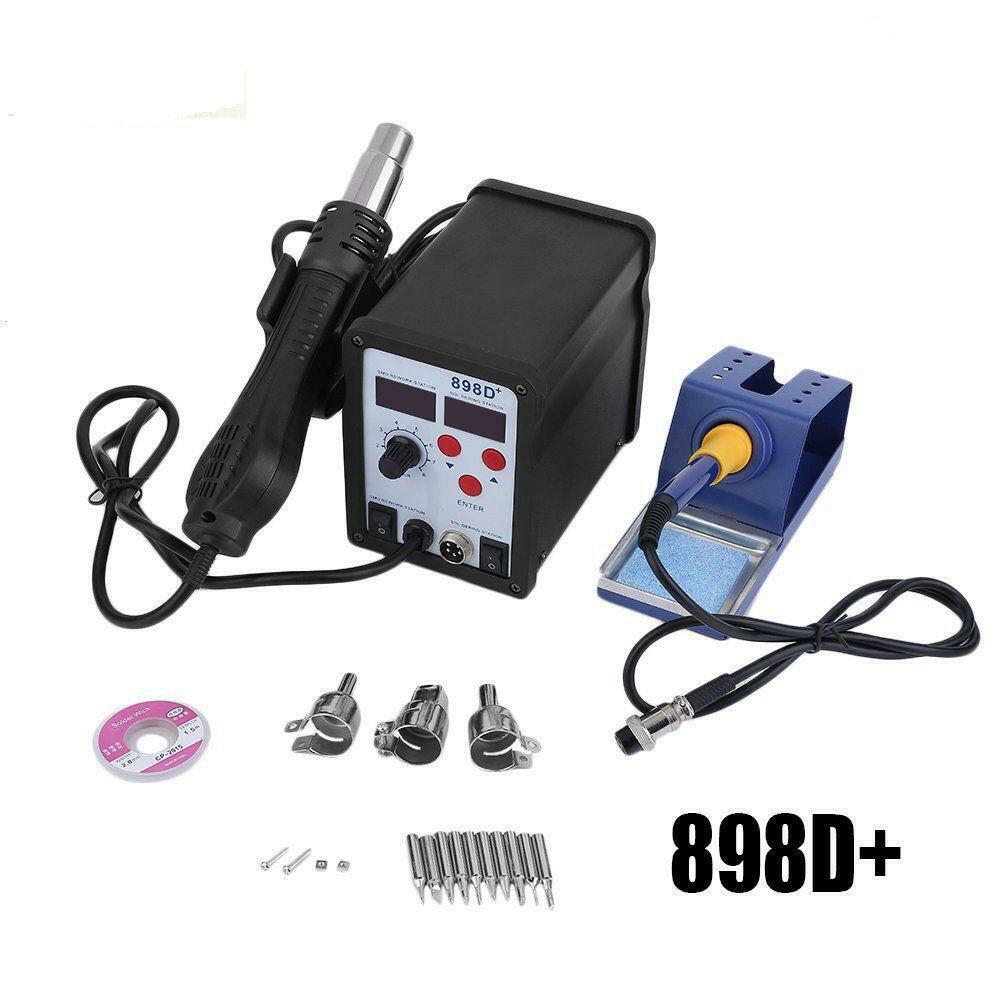

• Station: 898D+
• Color: Black

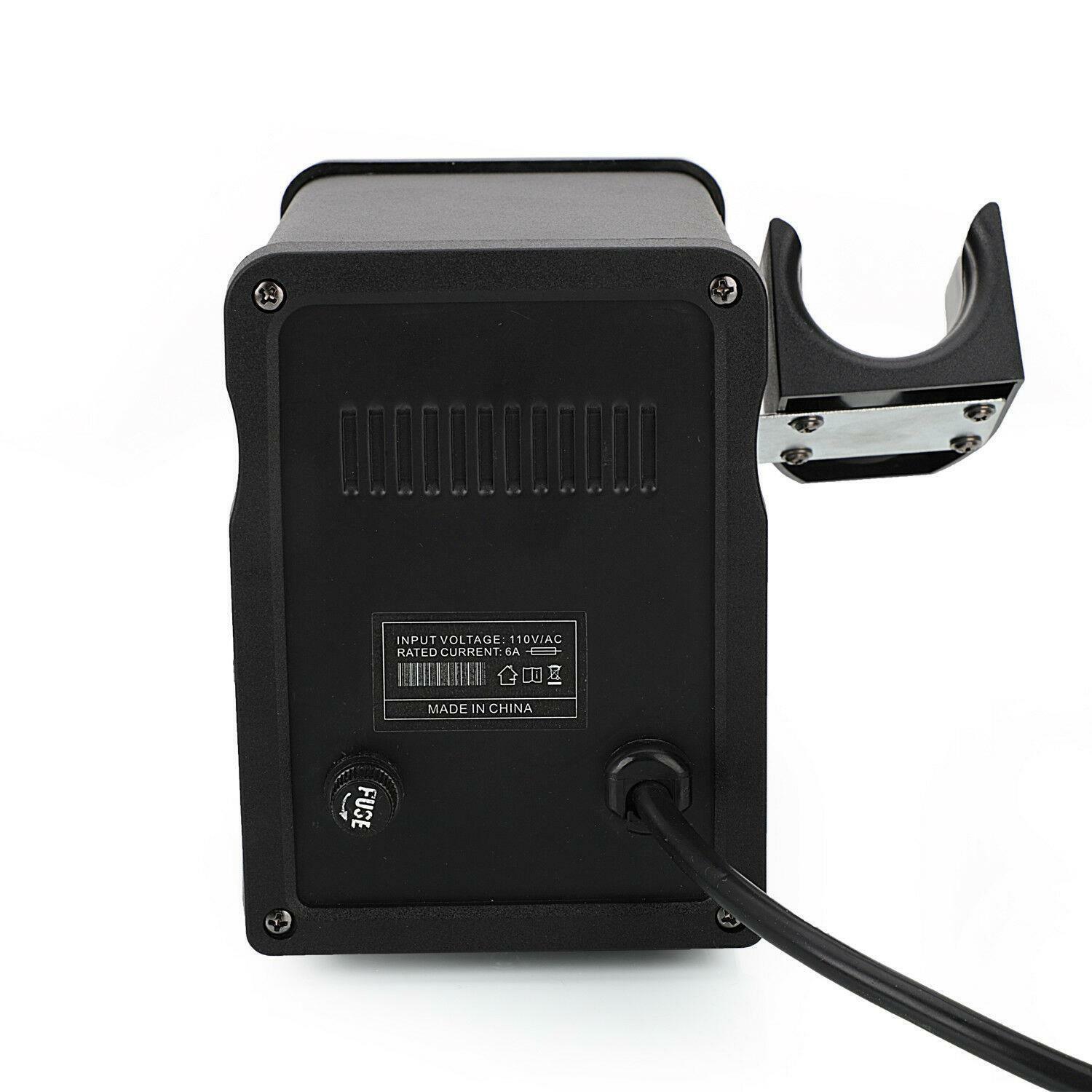

• Input Voltage: 110V AC
• Work Environment: 100℃-450℃
• Pated Current: 6A
• Relative Temperature: ＜80%
• Relative Humidity：＜80%
• Storage Environment: -20-80℃
• Acoustic Sound Level: ＜45db
• Cable Length: 52.36" / 133cm
• Dimensions: (10.03 x 7.36 x 4.92)" / (25.5 x 18.7 x 12.5)cm (L x W x H)

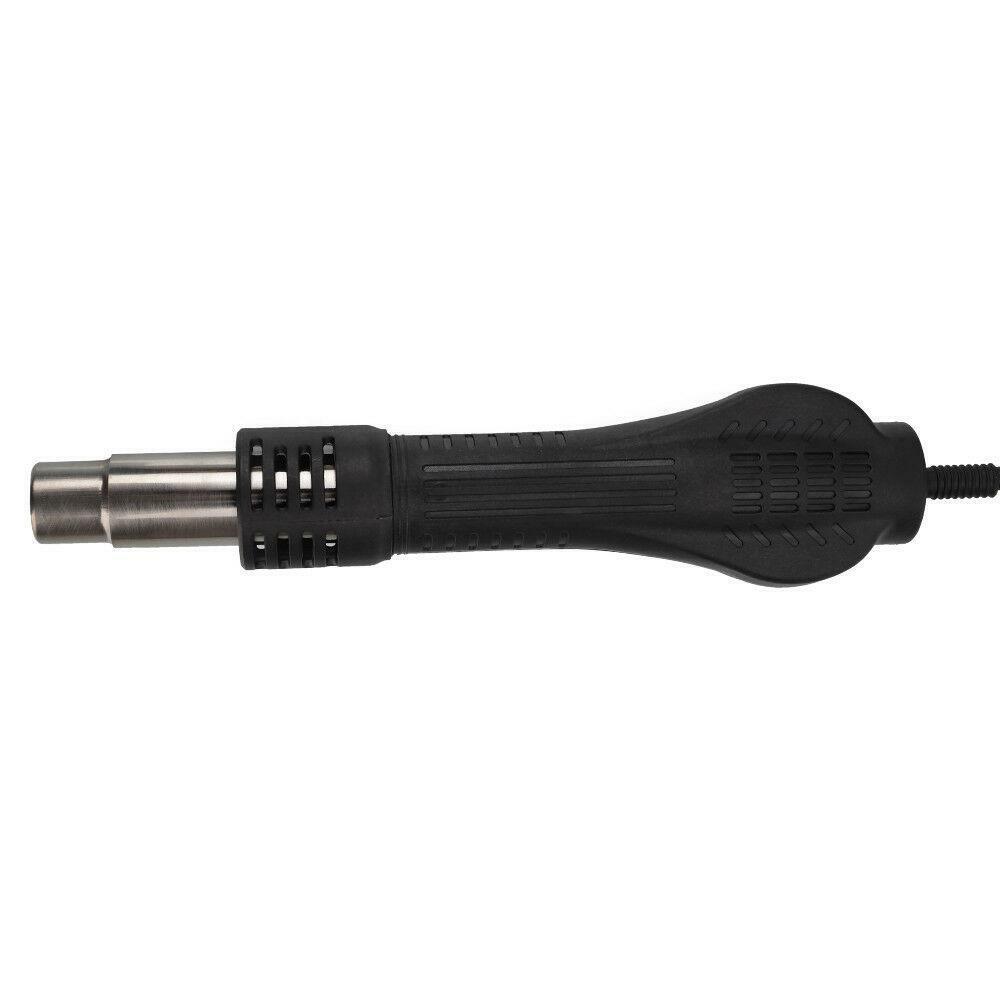

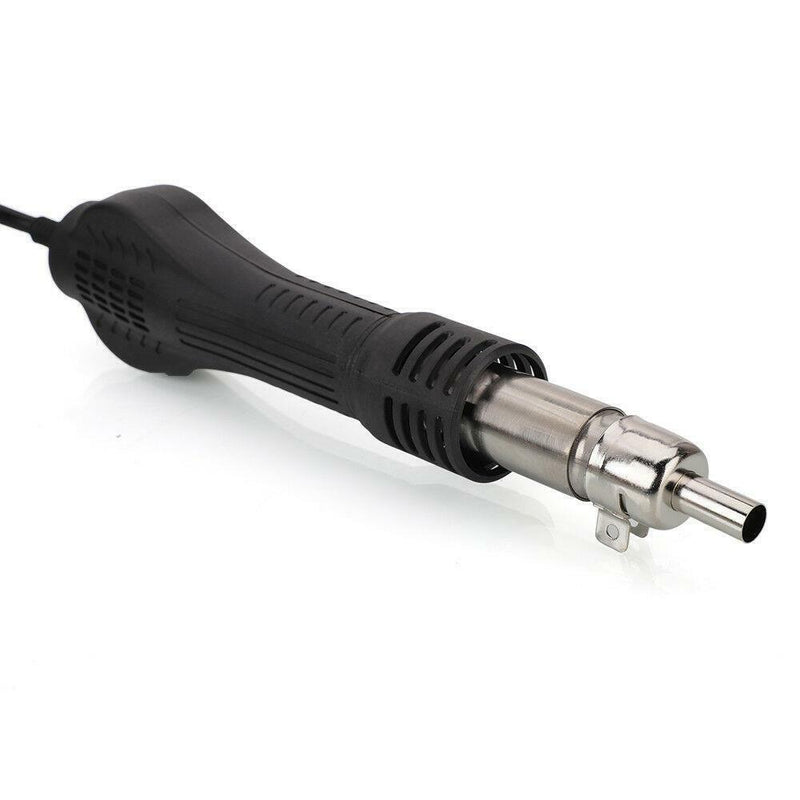

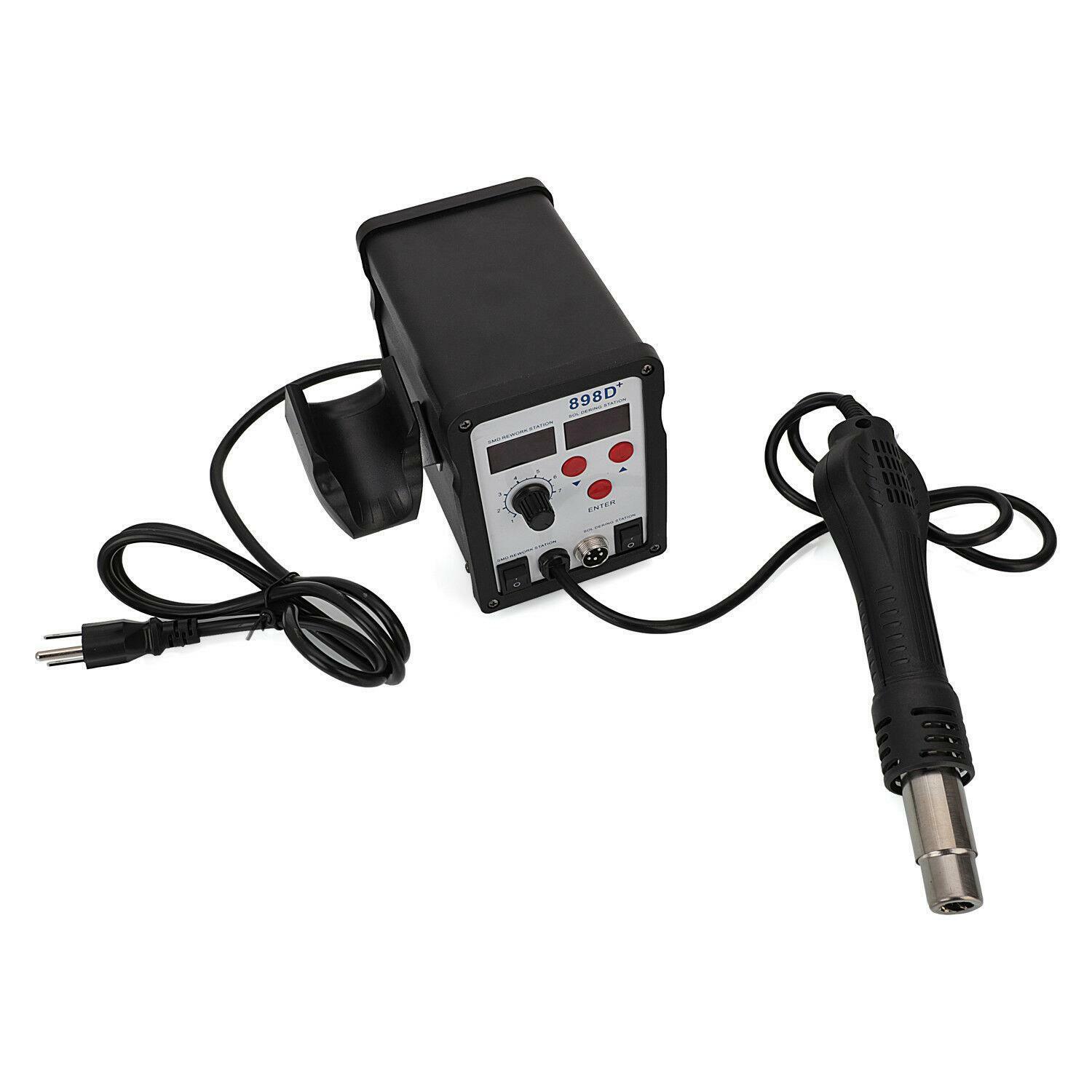

Hot Air Gun

• Voltage:  110V
• Power Consumption: 750W ± 10%
• Gun Temperature Range:100-480℃
• Air Flow: ＜120L/min(Max)
• Temperature Stability: ±1℃ (Statics)
• Gun Heater Material: Ferro-Alloys
• Cable Length: 35.63" / 90.5cm

Soldering Iron

• Temperature Range: 200-480℃
• Gun Heater Material: Ceramic Heater
• Temperature Stability: ±1℃ (Static)
• Cable Length: 33.85" / 86cm
• Total Weight: 91.68oz / 2599g

Soldering Accessories

• 3 Nozzles (5mm, 7mm, 10mm)for versatile applications
• 1 Spanner to convenient change nozzles
• 1 Sponge to wipe the soldering tips at times
• 1 Desoldering Wick CP-2015F for perfect joint

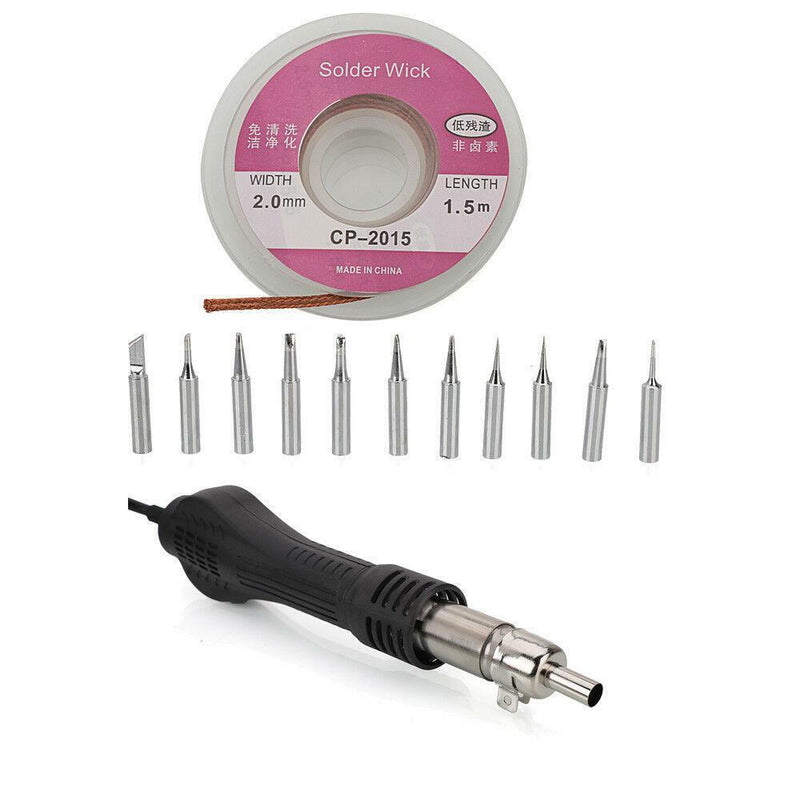

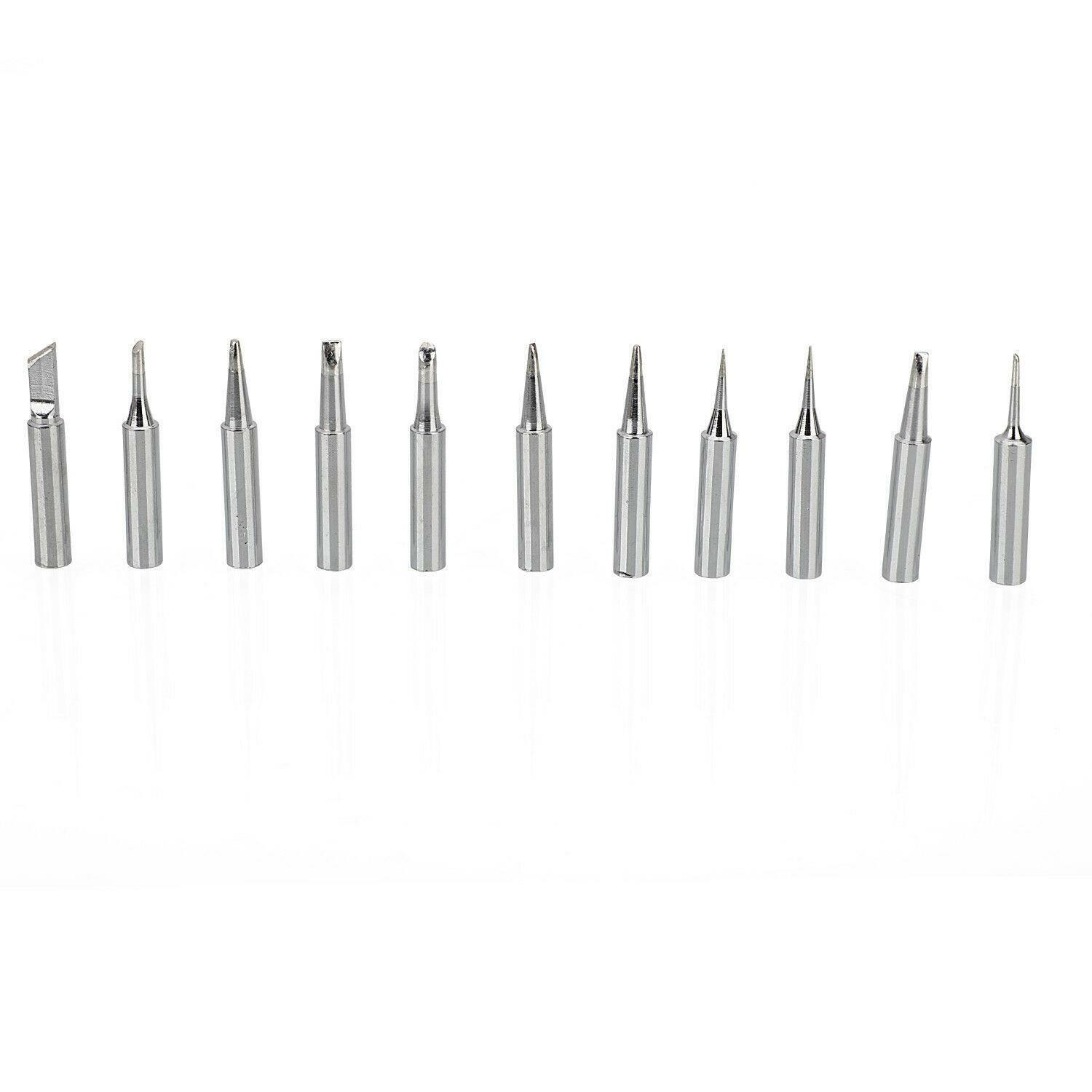

• 11pcs of Iron tips (900M-T-B, 3C, 2.4D, 1.2D, K, 3.2D, 2C, 1.6D, 4C,Two 900M-I),
• 2 x Accessories

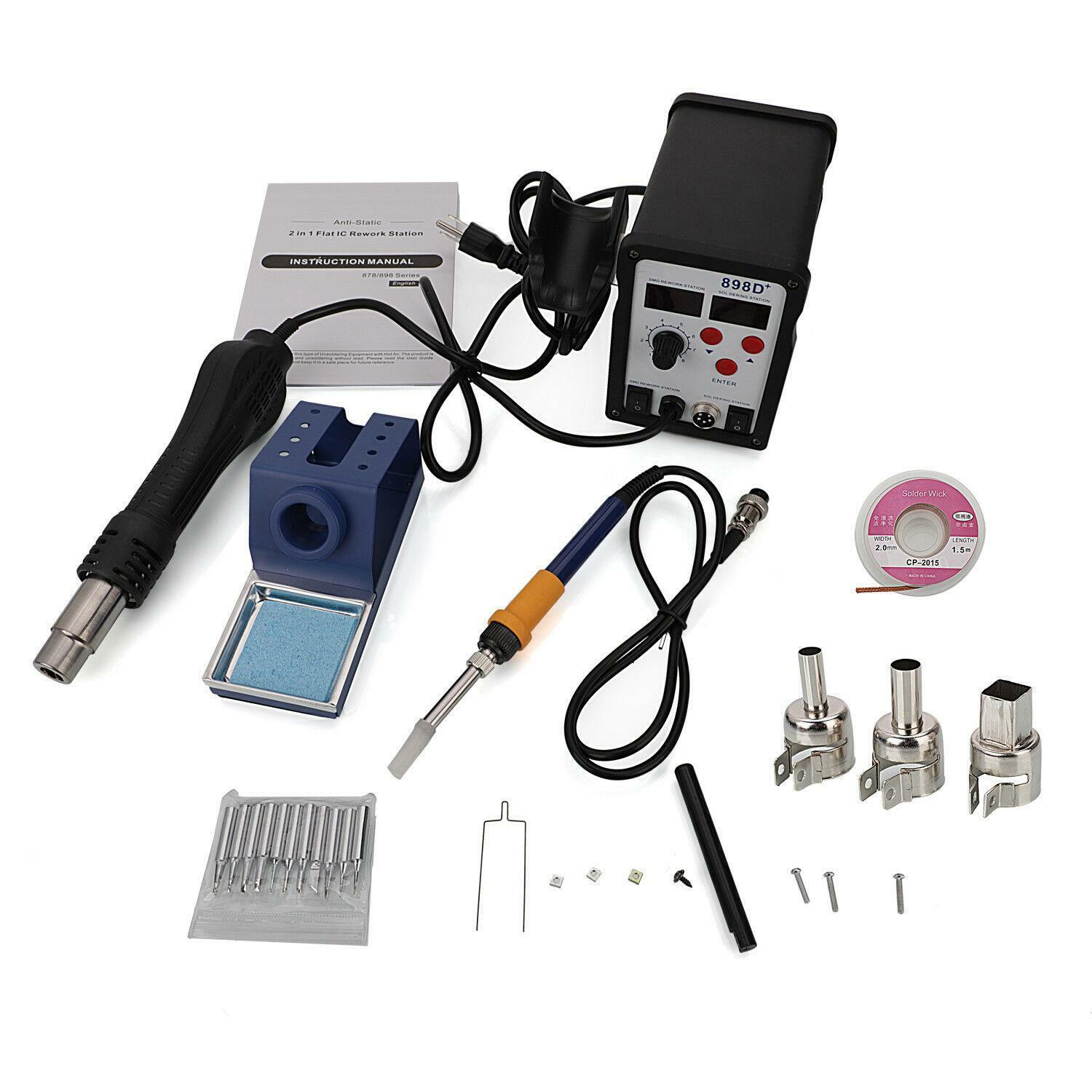

WHAT’S INCLUDED?

• 1 x  Rework Station
• 1 x Hot Air Gun
• 1 x Iron Stand
• 1 x Soldering Iron
• 1 x 11 Soldering Iron Heads

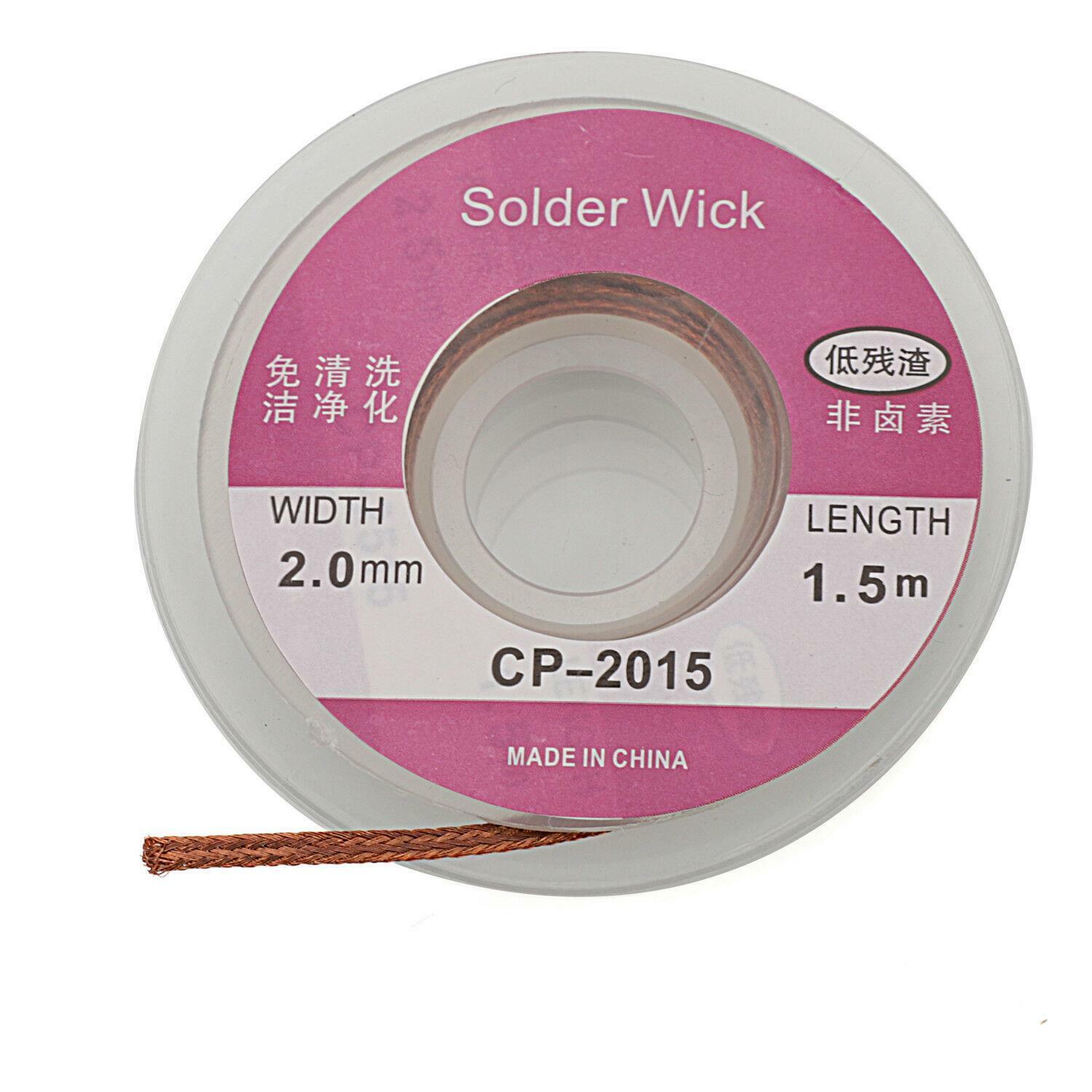

• 1 x CP-2015F Solder Wick
• 3 x Nozzles
• 2 x Accessories
• 1 x Sponge
